[Made in Germany] VOCOM II Mini 88890400 WIFI VOCOM 2 Original Truck Diagnostic adapter Heavy Duty Truck Diagnosis Supports EUR6,FH4/FM4 for Volvo/Renault/UD/Mack

Regular price $999.00
Regular price Sale price $999.00
Sale Sold out
Shipping calculated at checkout.

Frequently bought together

Volvo 88890300 Vocom Interface with PTT 2.7.25 for Volvo/Renault/UD/Mack Multi-languages Truck Diagnose Square Interface Free Shipping

Product Introduction:
VOCOMII dongle, produced by ACTIA in Germany, covers all the functions of the VOCOM2 VOCOMII 88890400, which doesn’t need any cables accessories because it can be connected to the laptop via WIFI perfectly. It is a portable vehicle communication device for its size and weight.
Product Features:
Small, light weight and powerful – fits in your pocket.

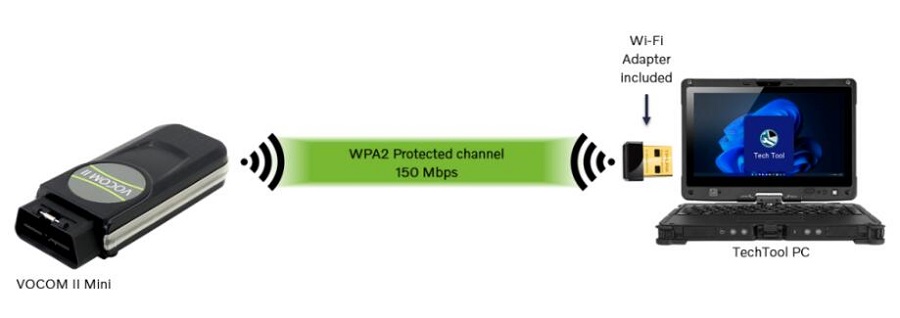

Secure and fast Wi-Fi communication
Communicates over 2.4 Ghz and 5 Ghz Wi-Fi networks up to 300 Mbit/s – no cables required.
Support vehicle diagnosis and programming
Smart indicator lights to offer users device information

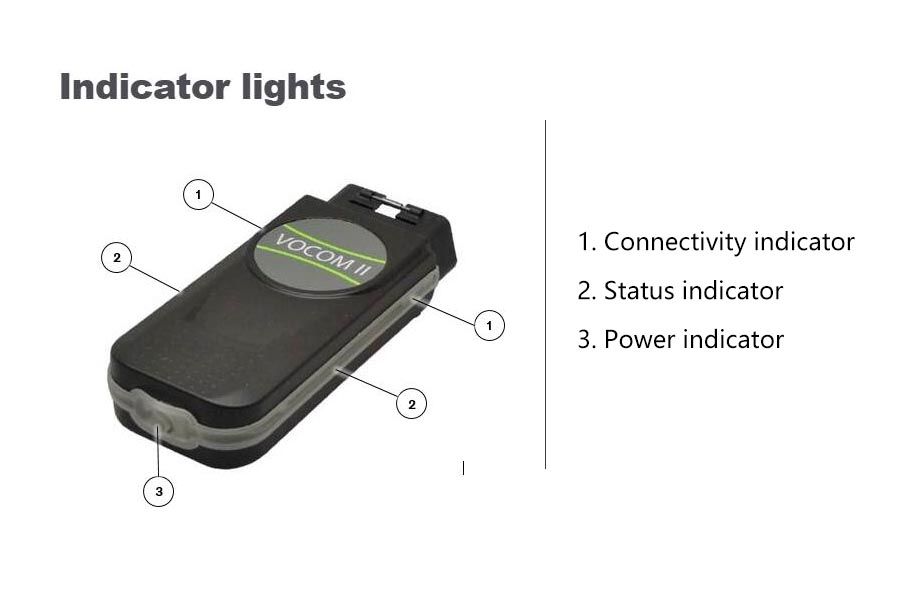

Device Indicator Meaning:

Connectivity indicator
Blue light.
Blinks when connecting.
Stable light when connected.
Status indicator
Green light when starting up.
Light is off when the device is ready to operate.
Red light when errors are stored in the memory.
Stored errors does not prevent you from using the device.
Power indicator
Blinks when starting up.
Stable light when ready to operate.
Note: The color of the light indicates the battery condition of the connected vehicle. The device itself has no internal battery.

4 V battery 12 V battery Battery condition Power indicator color
> 24.3 V > 12.15 V Good Green
23.2 V -24.3 V 11.6 V-12.15 V Bad Orange
< 23.2 V < 11.6 V Critical Red

Supported Vehicles Models:
Volvo Trucks - Older electrical system, Vehicle electrical system '98; VERSION2, VERSION3; VERSION4 - FH4/FM4;
Volvo Buses - Conventional, Multiplexed, Multiplexed v2, Multiplexed v3;
Volvo Construction Equipment;
Volvo Marine engines - VERSION2, VERSION3;
Volvo OEM Component Customer - VERSION2, VERSION3;
Product Specifications:
Computer operating system Windows 10 (32/64 bit)
Computer connection   Wi-Fi
Wi-Fi support IEEE 802.11 a/b/g/n    2.4 Ghz and 5 Ghz
Wi-Fi security PSK, EAP-PEAP, EAP-TLS,WPA or WPA2
Diagnostic application interfaces RP1210C, J2534, J2534-1
Vehicle battery 12V or 24V
Vehicle electronic architecture Version 2, Version 3, Version 4 T1
Vehicle connection(*using OBD2 adapter) OBD2, 9-Pin*
Vehicle interfaces    2xCAN (max. 1 Mbps) 1xJ1708 (max. 38 Kbps)
Vehicle communication protocols ISO 11898,ISO 15765-2, SAE J1939, SAE J1708,SAE J1708
Operating voltage 6V to 32V (max. 36V)
Operating temperature -40°C to +70°C/ -40°F to +158°F
IP protection rating IP44
Weight 85 grams/3 ounces
Dimensions (WxDxH)   110mm x 47mm x 22mm/4.33in x 1.85in x 0.86in

Package Includes:
1pc x VOCOM II Mini dongle
1pc x WiFi Adapter
1pc x 8pin OBD2 cable
1.What software version is recommended?
It is recommended to use software version 2.7.116. This version is relatively stable in testing. The latest version of the original 2.8.130 has customer feedback that it is unstable (our SS167-G’s version 2.7.25 is not supported)
2.Does it support USB connection?
No, it only supports wifi communication (you can use the wifi network card that comes with the laptop, or use the matching USB wifi adapter to connect), the wifi password is v2d + device serial number (lowercase letters)
3.How many years of vehicle models does it support?
It can support vehicles models from the year of 1996 to 2021.
4.What cables does the product include?
The mini vocom ii comes with 8pin cable, but it does NOT include 14pin and Renault 12pin cable, which need to be bought separately.
